Specificity analysis

🧠 Key takeaways

Specificity is determined mainly by the CDR3 sequences and V genes, and can be inferred from databases, sequence similarity or machine learning models.

TCRdist finds more database matches than exact matching, but the sequence definitions and gene names of both sides have to agree.

Many database matches are coincidental, which the paired gene expression reveals, and predictions for unseen epitopes are close to random.

⚙️ Environment setup
Steps
yml

  1. Install conda:

    • Before creating the environment, ensure that conda is installed on your system.

  2. Save the yml content:

    • Copy the content from the yml tab into a file named environment.yml.

  3. Create the environment:

    • Open a terminal or command prompt.

    • Run the following command:

      conda env create -f environment.yml

  4. Activate the environment:

    • After the environment is created, activate it using:

      conda activate <environment_name>

    • Replace <environment_name> with the name specified in the environment.yml file. In the yml file it will look like this:

      name: <environment_name>

  5. Verify the installation:

    • Check that the environment was created successfully by running:

      conda env list
🗄️ Get data and notebooks

This book uses lamindb to store, share, and load datasets and notebooks using the theislab/sc-best-practices instance. We acknowledge free hosting from Lamin Labs.

  1. Install lamindb

    • Install the lamindb Python package:

    pip install lamindb

  2. Optionally create a lamin account

  3. Verify your setup

    • Run the lamin connect command:

    import lamindb as ln

ln.Artifact.connect("theislab/sc-best-practices").df()

    You should now see up to 100 of the stored datasets.

  4. Accessing datasets (Artifacts)

    • Search for the datasets on the Artifacts page

    • Load an Artifact and the corresponding object:

    import lamindb as ln

af = ln.Artifact.connect("theislab/sc-best-practices").get(
    key="key_of_dataset", is_latest=True
)
obj = af.load()

    The object is now accessible in memory and is ready for analysis. Adapt the lamindb.Artifact.connect("theislab/sc-best-practices").get("SOMEIDXXXX") suffix to get respective versions.

  5. Accessing notebooks (Transforms)

    lamin load <notebook url>

    which will download the notebook to the current working directory. Analogously to Artifacts, you can adapt the suffix ID to get older versions.

Motivation

The antigen specificity of a receptor is determined mainly by its CDR3 sequences and additionally by its V genes, which encode CDR1 and CDR2 Dash et al., 2017Springer et al., 2021. Specificity can be measured with barcoded peptide-MHC multimers or antigens, but most datasets lack such measurements. It can instead be inferred by matching receptors to databases of receptors with known specificity, by grouping receptors with similar sequences, or with machine learning models.

import warnings

import anndata as ad
import lamindb as ln
import pandas as pd
import scirpy as ir

warnings.filterwarnings("ignore", category=ad.ExperimentalFeatureWarning)

ln.connect("theislab/sc-best-practices")

ln.track("as8W2VK7byRf")
Output
→ connected lamindb: theislab/sc-best-practices

! It looks like you are running jupyter lab but don't have jupyter-server module installed. Please install it via pip install jupyter-server

→ loaded Transform('as8W2VK7byRf0000', key='specificity.ipynb'), started new Run('a5Azn9RySEgETINU') at 2026-09-29 18:11:18 UTC

We load the T and B cells with the clonotypes from the previous chapter.

mdata_tcr = ln.Artifact.get(
    key="air_repertoire/stephenson2021_tcr_clonotypes.h5mu"
).load()
mdata_bcr = ln.Artifact.get(
    key="air_repertoire/stephenson2021_bcr_clonotypes.h5mu"
).load()

Querying VDJdb

VDJdb collects TCRs with experimentally determined epitopes Shugay et al., 2018Bagaev et al., 2020. We use the human TCRs of a pinned release, which scirpy obtains from IggyTop with all CDR3 sequences harmonized to junctions, and first search for cells whose α and β chains are identical to an entry.

vdjdb = ln.Artifact.get(key="air_repertoire/vdjdb_human.h5ad").load()
vdjdb
AnnData object with n_obs × n_vars = 175339 × 0 obs: 'MHC_class', 'MHC_gene_1', 'MHC_gene_2', 'PMID', 'antigen_name', 'antigen_species', 'assay_category', 'assay_method_raw', 'epitope_sequence', 'iedb_iri', 'source_organism', 'tissue', 'source' uns: 'DB', 'chain_indices', 'iggytop_metadata' obsm: 'airr', 'chain_indices'
ir.pp.ir_dist(mdata_tcr, vdjdb, metric="identity", sequence="aa")
ir.tl.ir_query(
    mdata_tcr,
    vdjdb,
    metric="identity",
    sequence="aa",
    receptor_arms="all",
    dual_ir="any",
)
exact = ir.tl.ir_query_annotate(
    mdata_tcr,
    vdjdb,
    metric="identity",
    sequence="aa",
    include_ref_cols=["antigen_species"],
    inplace=False,
)
Output
Loading...
exact["antigen_species"].value_counts().head(8)
antigen_species ambiguous 142 Epstein-Barr virus 67 Cytomegalovirus 53 Influenza A virus 47 Homo sapiens 26 M.tuberculosis 22 Severe acute respiratory syndrome coronavirus 2 18 Yellow fever virus 12 Name: count, dtype: int64

Few cells share both chains with an entry, since even TCRs against the same epitope rarely have identical sequences. Cells that match entries of different antigens are labeled as ambiguous.

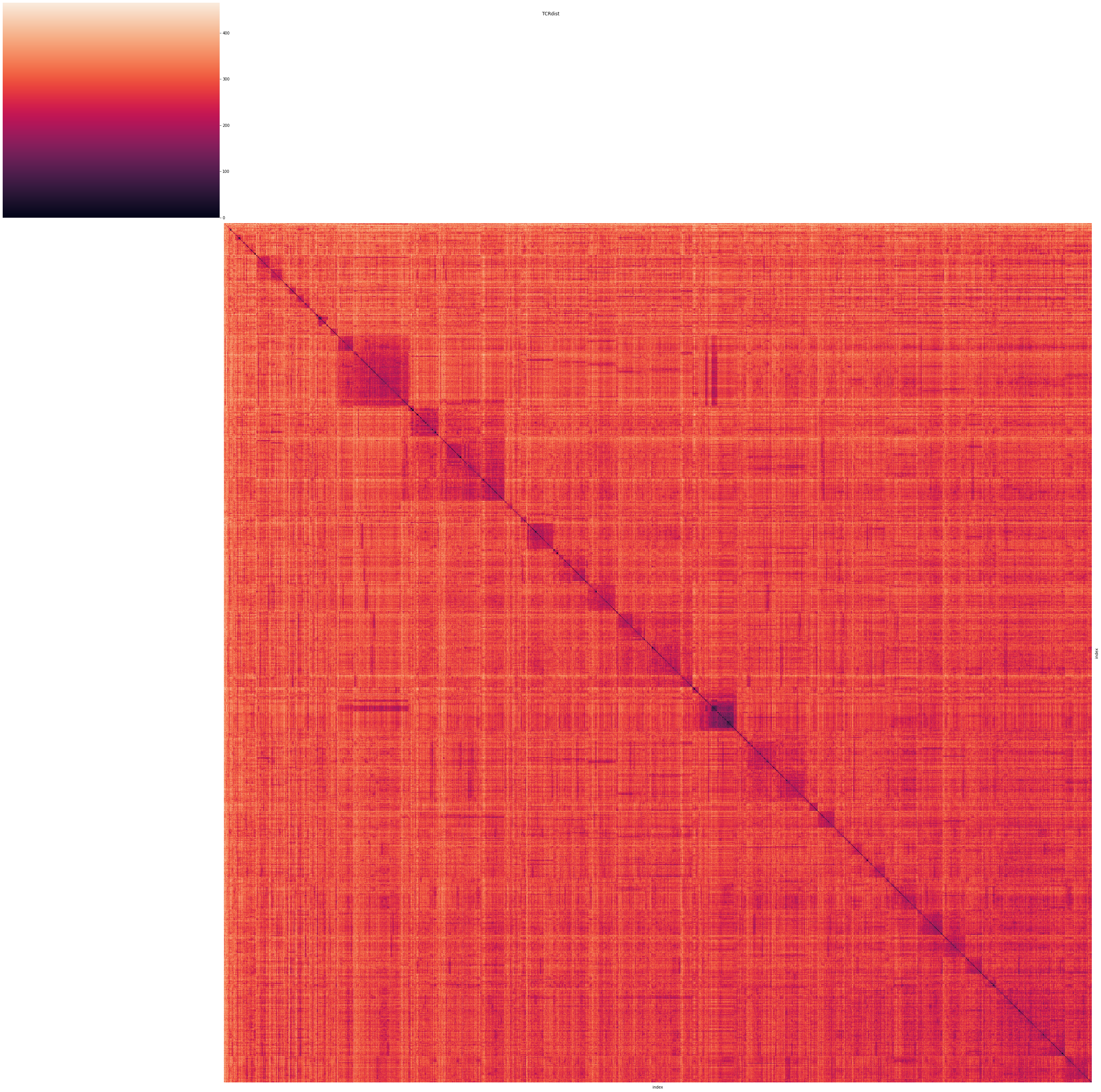

TCRdist compares CDR3 sequences with an amino acid substitution matrix and gap penalties, and TCRs within a small distance likely recognize the same epitope Dash et al., 2017. It grouped TCRs by epitope at least as well as other clustering methods and protein language models in independent comparisons Hudson et al., 2024Nagano et al., 2025. We accept matches within a TCRdist of 15 in both chains and require the same V genes.

ir.pp.ir_dist(mdata_tcr, vdjdb, metric="tcrdist", sequence="aa", cutoff=15)
ir.tl.ir_query(
    mdata_tcr,
    vdjdb,
    metric="tcrdist",
    sequence="aa",
    receptor_arms="all",
    dual_ir="any",
    same_v_gene=True,
)
ir.tl.ir_query_annotate(
    mdata_tcr,
    vdjdb,
    metric="tcrdist",
    sequence="aa",
    include_ref_cols=["antigen_species", "epitope_sequence", "MHC_class"],
)
mdata_tcr.pull_obs()
Output
/home/lheumos/miniforge3/envs/air-repertoire/lib/python3.13/site-packages/scirpy/ir_dist/metrics.py:1514: NumbaTypeSafetyWarning: unsafe cast from uint64 to int64. Precision may be lost.
  data_rows[row_index][0] = data_row_matrix[thread_id, 0:row_end_index].copy()
Loading...
mdata_tcr.obs["airr:antigen_species"].value_counts().head(8)
airr:antigen_species ambiguous 495 Cytomegalovirus 312 Epstein-Barr virus 196 Influenza A virus 152 Homo sapiens 87 Severe acute respiratory syndrome coronavirus 2 72 M.tuberculosis 53 Human immunodeficiency virus 1 39 Name: count, dtype: int64[pyarrow]

TCRdist annotates almost four times as many cells as exact matching. Most matches are to cytomegalovirus, Epstein-Barr virus and influenza A virus, against which most adults carry memory T cells, and about a third of the matched cells match entries of several antigens.

How reliable are the matches?

A match only indicates that a similar TCR bound an epitope in another person, and the paired gene expression lets us test whether the matches are plausible. Epitopes presented by MHC class I are recognized by CD8+ T cells and those presented by MHC class II by CD4+ T cells.

pd.crosstab(mdata_tcr.obs["airr:MHC_class"], mdata_tcr.obs["gex:cell_type_coarse"])
Loading...

Of the cells matched to MHC class I epitopes, 728 are CD4+ T cells, which cannot recognize them, and 437 are CD8+ T cells. Since CD4+ T cells outnumber CD8+ T cells about 2.5 to 1, the matches are barely enriched in CD8+ T cells, so many of them must be coincidental.

sars_cov_2 = "Severe acute respiratory syndrome coronavirus 2"
donors = (
    mdata_tcr.obs.assign(
        sars_cov_2=lambda obs: obs["airr:antigen_species"].eq(sars_cov_2).fillna(False),
        cytomegalovirus=lambda obs: (
            obs["airr:antigen_species"].eq("Cytomegalovirus").fillna(False)
        ),
    )
    .groupby(["gex:severity", "gex:patient_id"], observed=True)[
        ["sars_cov_2", "cytomegalovirus"]
    ]
    .mean()
)
donors.groupby("gex:severity", observed=True).median()
Loading...

If the matches reflected specificity, T cells matching SARS-CoV-2 epitopes should be more frequent in patients than in healthy donors. Instead, they make up about 0.1% of the T cells of each donor in every group, whereas cytomegalovirus matches are more frequent in all groups.

expansion = pd.crosstab(
    mdata_tcr.obs["airr:antigen_species"],
    mdata_tcr.obs["airr:clonal_expansion"],
    normalize="index",
).loc[["Cytomegalovirus", "Epstein-Barr virus", "Influenza A virus", sars_cov_2]]
expansion.loc["all T cells"] = mdata_tcr.obs["airr:clonal_expansion"].value_counts(
    normalize=True
)
expansion
Loading...

Cells matching cytomegalovirus or influenza A virus epitopes are twice as often part of clonotypes with more than two cells as T cells overall, consistent with the memory T cells that these viruses induce. Cells matching SARS-CoV-2 epitopes are not expanded, so database matches alone cannot identify the T cells that respond to the infection.

Predicting specificity

Machine learning models predict whether a TCR binds a given epitope. In community benchmarks, they performed reasonably for epitopes with many known TCRs but close to random for epitopes that were absent from their training data Meysman et al., 2023Nielsen et al., 2024. Independent evaluations of 21 published predictors and of 50 models confirmed that none generalizes to such unseen epitopes Drost et al., 2025Lu et al., 2026. Their predictions for epitopes outside the training data should therefore be treated as hypotheses that require experimental validation.

BCR specificity

BCRs bind diverse antigens without MHC restriction, and far fewer BCRs with known specificity are available than TCRs. CoV-AbDab collects published antibodies against coronaviruses Raybould et al., 2021. It reports CDR3 sequences without the conserved flanking residues, so we compare them to the cdr3_aa field of our BCRs rather than to their junctions, and search for heavy chains with the same CDR3 and V gene.

cov_abdab = ln.Artifact.get(key="air_repertoire/cov_abdab_080224.csv").load()
cov_abdab["v_call"] = cov_abdab["Heavy V Gene"].str.split(" ").str[0]
heavy = ir.get.airr(mdata_bcr, ["cdr3_aa", "v_call"], "VDJ_1")
heavy["VDJ_1_v_call"] = heavy["VDJ_1_v_call"].str.split("*").str[0]
heavy.reset_index().merge(
    cov_abdab, left_on=["VDJ_1_cdr3_aa", "VDJ_1_v_call"], right_on=["CDRH3", "v_call"]
)[["cell_id", "VDJ_1_cdr3_aa", "VDJ_1_v_call", "Name", "Binds to"]]
Loading...

A single IgG plasma cell of a patient with mild COVID-19 carries the heavy chain CDR3 and V gene of REGN10957, an antibody against SARS-CoV-2, but its light chain differs. Somatic hypermutation and the diversity of BCRs make such matches rare, so the specificity of B cells is better measured experimentally, for example by sequencing them together with barcoded antigens Setliff et al., 2019.

We store the annotated T cells for the integration with gene expression.

ln.Artifact.from_mudata(
    mdata_tcr,
    key="air_repertoire/stephenson2021_tcr_specificity.h5mu",
    description="T cells of the Stephenson 2021 Cambridge samples with VDJdb matches",
).save()
Output
→ returning artifact with same hash: Artifact(uid='3I589652WSqI0YEs0000', key='air_repertoire/stephenson2021_tcr_specificity.h5mu', description='T cells of the Stephenson 2021 Cambridge samples with VDJdb matches', suffix='.h5mu', kind='dataset', otype='MuData', size=814847697, hash='MdD7EGk9EbChbko_zXTqE3', n_files=None, n_observations=54137, extra_data=None, branch_id=1, created_on_id=1, space_id=1, storage_id=1, run_id=182, schema_id=None, created_by_id=2, created_at=2026-09-29 18:09:12 UTC, is_locked=False, version_tag=None, is_latest=True); to track this artifact as an input, use: ln.Artifact.get()
Artifact(uid='3I589652WSqI0YEs0000', key='air_repertoire/stephenson2021_tcr_specificity.h5mu', description='T cells of the Stephenson 2021 Cambridge samples with VDJdb matches', suffix='.h5mu', kind='dataset', otype='MuData', size=814847697, hash='MdD7EGk9EbChbko_zXTqE3', n_files=None, n_observations=54137, extra_data=None, branch_id=1, created_on_id=1, space_id=1, storage_id=1, run_id=182, schema_id=None, created_by_id=2, created_at=2026-09-29 18:09:12 UTC, is_locked=False, version_tag=None, is_latest=True)

Quiz

Loading...

Contributors

We gratefully acknowledge the contributions of:

Authors

  • Felix Drost

Reviewers

  • Lukas Heumos

References
  1. Dash, P., Fiore-Gartland, A. J., Hertz, T., Wang, G. C., Sharma, S., Souquette, A., Crawford, J. C., Clemens, E. B., Nguyen, T. H., Kedzierska, K., & others. (2017). Quantifiable predictive features define epitope-specific T cell receptor repertoires. Nature, 547(7661), 89–93.
  2. Springer, I., Tickotsky, N., & Louzoun, Y. (2021). Contribution of t cell receptor alpha and beta cdr3, mhc typing, v and j genes to peptide binding prediction. Frontiers in Immunology, 12.
  3. Shugay, M., Bagaev, D. V., Zvyagin, I. V., Vroomans, R. M., Crawford, J. C., Dolton, G., Komech, E. A., Sycheva, A. L., Koneva, A. E., Egorov, E. S., & others. (2018). VDJdb: a curated database of T-cell receptor sequences with known antigen specificity. Nucleic Acids Research, 46(D1), D419–D427.
  4. Bagaev, D. V., Vroomans, R. M. A., Samir, J., Stervbo, U., Rius, C., Dolton, G., Greenshields-Watson, A., Attaf, M., Egorov, E. S., Zvyagin, I. V., Babel, N., Cole, D. K., Godkin, A. J., Sewell, A. K., Kesmir, C., Chudakov, D. M., Luciani, F., & Shugay, M. (2020). VDJdb in 2019: database extension, new analysis infrastructure and a T-cell receptor motif compendium. Nucleic Acids Research, 48(D1), D1057–D1062. 10.1093/nar/gkz874
  5. Hudson, D., Lubbock, A., Basham, M., & Koohy, H. (2024). A comparison of clustering models for inference of T cell receptor antigen specificity. ImmunoInformatics, 13, 100033. 10.1016/j.immuno.2024.100033
  6. Nagano, Y., Pyo, A. G. T., Milighetti, M., Henderson, J., Shawe-Taylor, J., Chain, B., & Tiffeau-Mayer, A. (2025). Contrastive learning of T cell receptor representations. Cell Systems, 16(1), 101165. 10.1016/j.cels.2024.12.006
  7. Meysman, P., Barton, J., Bravi, B., Cohen-Lavi, L., Karnaukhov, V., Lilleskov, E., Montemurro, A., Nielsen, M., Mora, T., Pereira, P., Postovskaya, A., Martínez, M. R., Fernandez-de Cossio-Diaz, J., Vujkovic, A., Walczak, A. M., Weber, A., Yin, R., Eugster, A., & Sharma, V. (2023). Benchmarking solutions to the T-cell receptor epitope prediction problem: IMMREP22 workshop report. ImmunoInformatics, 9, 100024. 10.1016/j.immuno.2023.100024
  8. Nielsen, M., Eugster, A., Jensen, M. F., Goel, M., Tiffeau-Mayer, A., Pelissier, A., Valkiers, S., Martínez, M. R., Meynard-Piganeeau, B., Greiff, V., Mora, T., Walczak, A. M., Croce, G., Moreno, D. L., Gfeller, D., Meysman, P., & Barton, J. (2024). Lessons learned from the IMMREP23 TCR-epitope prediction challenge. ImmunoInformatics, 16, 100045. 10.1016/j.immuno.2024.100045
  9. Drost, F., Chernysheva, A., Albahah, M., Kocher, K., Schober, K., & Schubert, B. (2025). Benchmarking of T cell receptor-epitope predictors with ePytope-TCR. Cell Genomics, 5(8), 100946. 10.1016/j.xgen.2025.100946
  10. Lu, Y., Wang, Y., Xu, M., Xie, B., Yang, Y., Xu, H., & Suo, S. (2026). Assessment of computational methods in predicting TCR–epitope binding recognition. Nature Methods, 23(1), 248–259. 10.1038/s41592-025-02910-0
  11. Raybould, M. I. J., Kovaltsuk, A., Marks, C., & Deane, C. M. (2021). CoV-AbDab: the Coronavirus Antibody Database. Bioinformatics, 37(5), 734–735. 10.1093/bioinformatics/btaa739
  12. Setliff, I., Shiakolas, A. R., Pilewski, K. A., Murji, A. A., Mapengo, R. E., Janowska, K., Richardson, S., Oosthuysen, C., Raju, N., Ronsard, L., Kanekiyo, M., Qin, J. S., Kramer, K. J., Greenplate, A. R., McDonnell, W. J., Graham, B. S., Connors, M., Lingwood, D., Acharya, P., … Georgiev, I. S. (2019). High-Throughput Mapping of B Cell Receptor Sequences to Antigen Specificity. Cell, 179(7), 1636-1646.e15. 10.1016/j.cell.2019.11.003
